Description

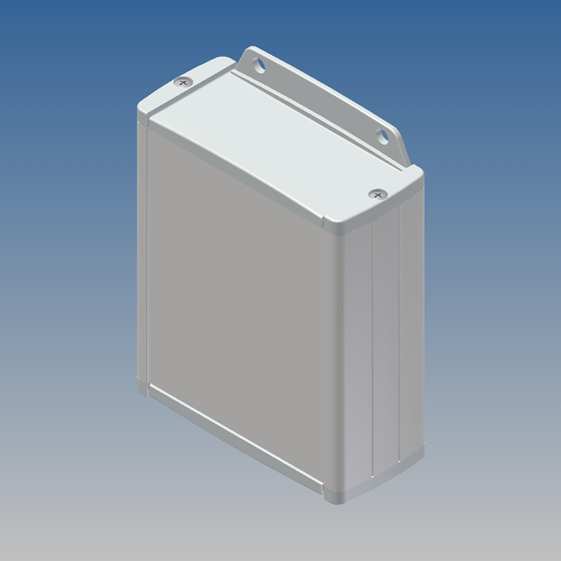

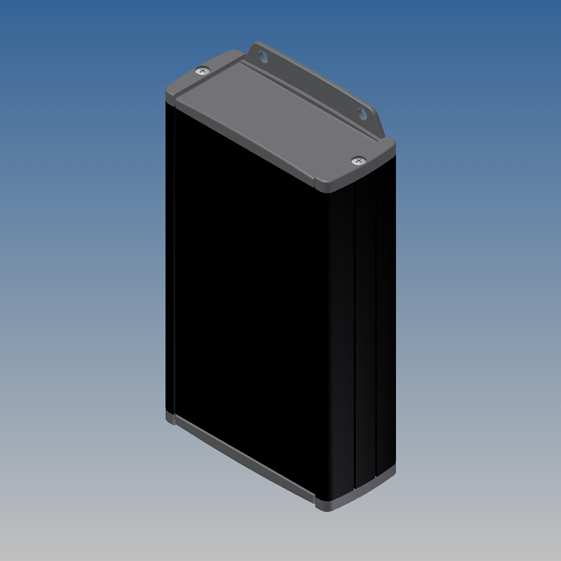

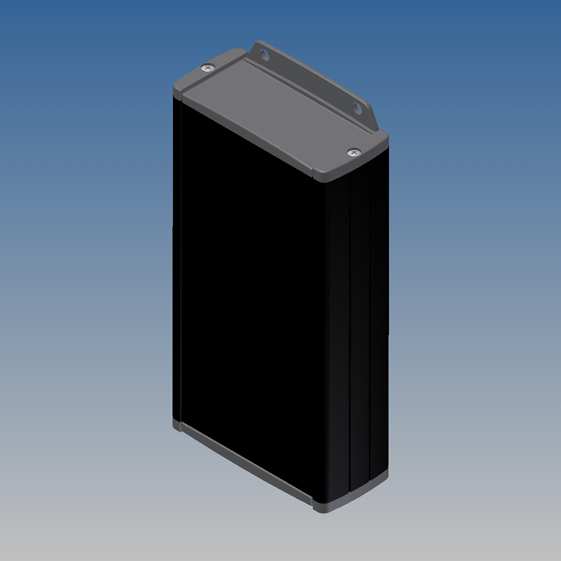

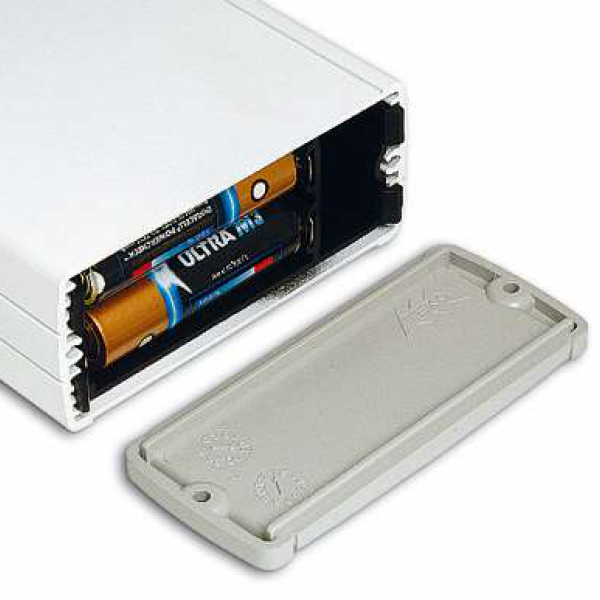

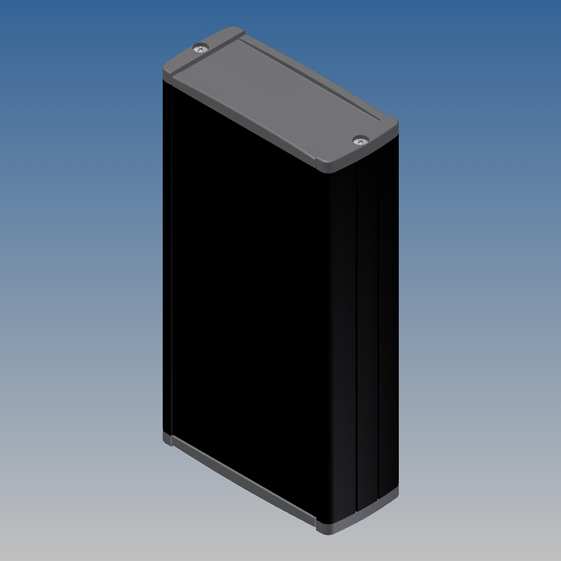

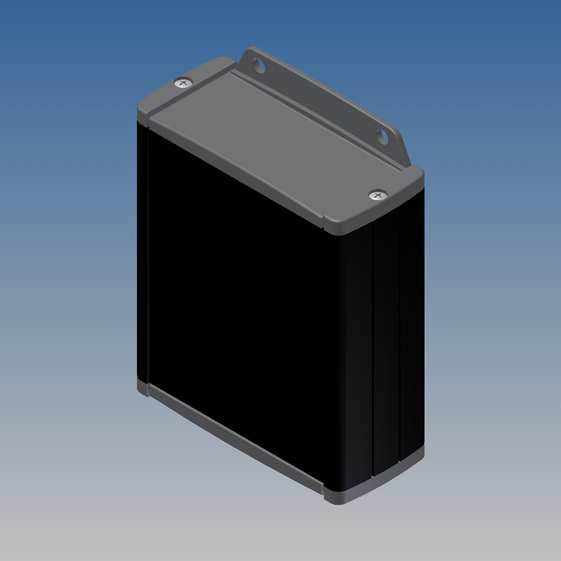

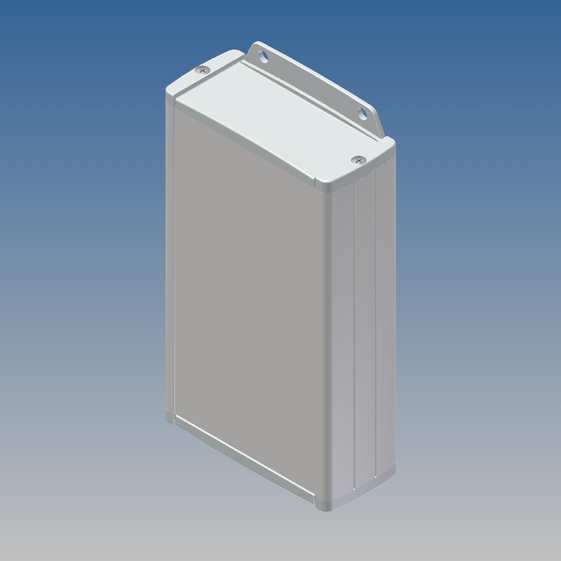

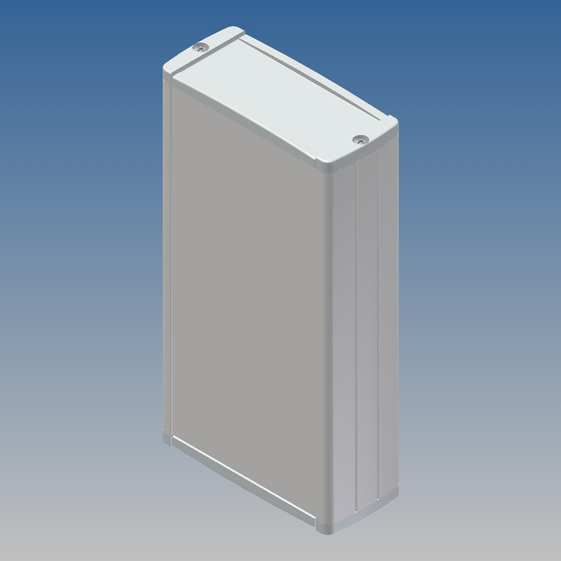

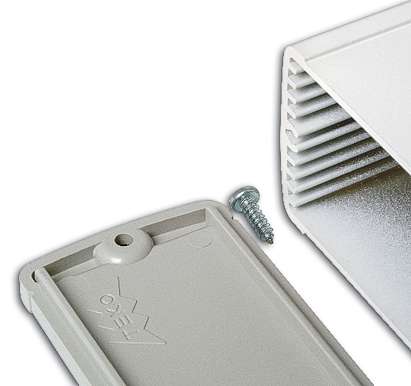

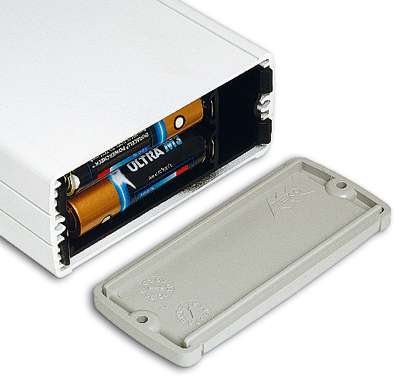

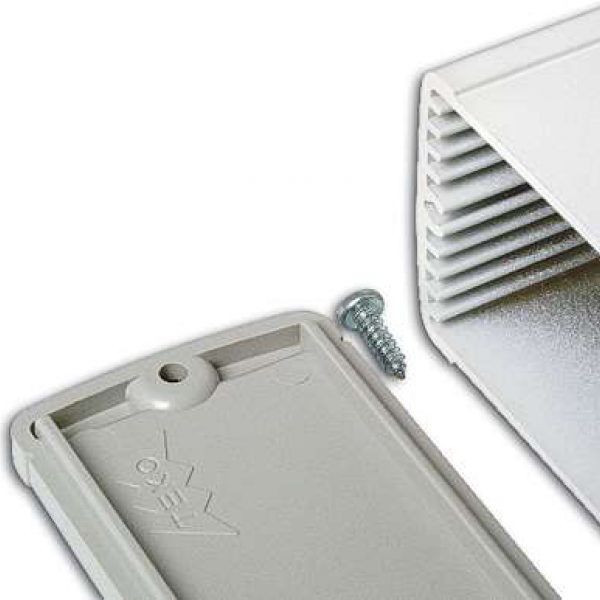

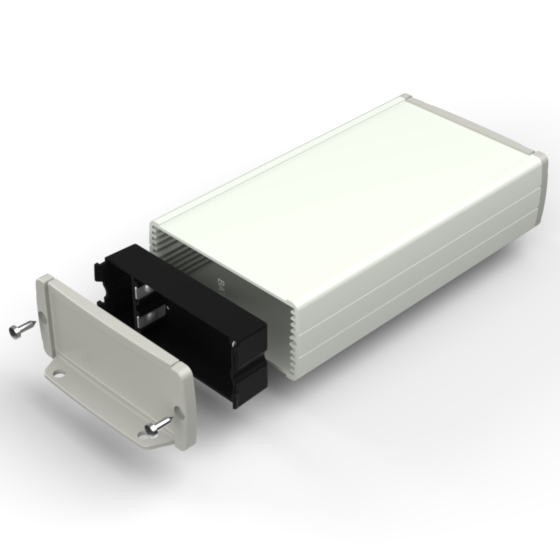

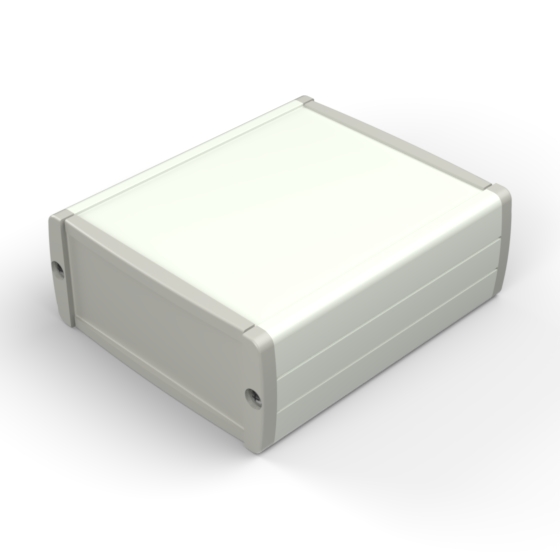

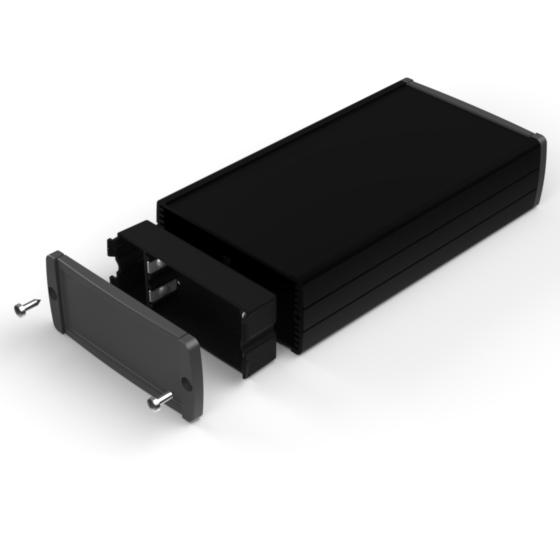

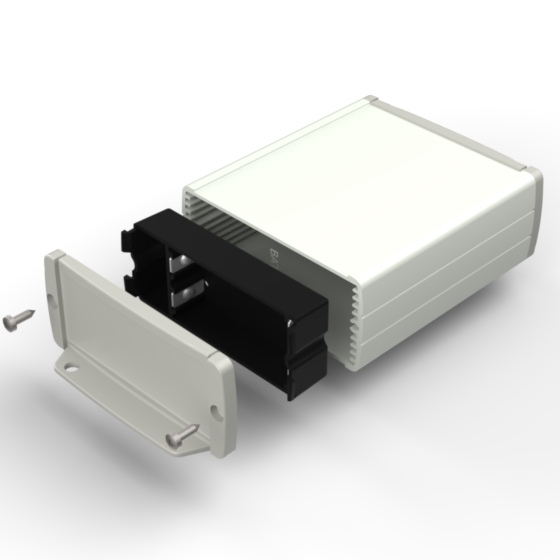

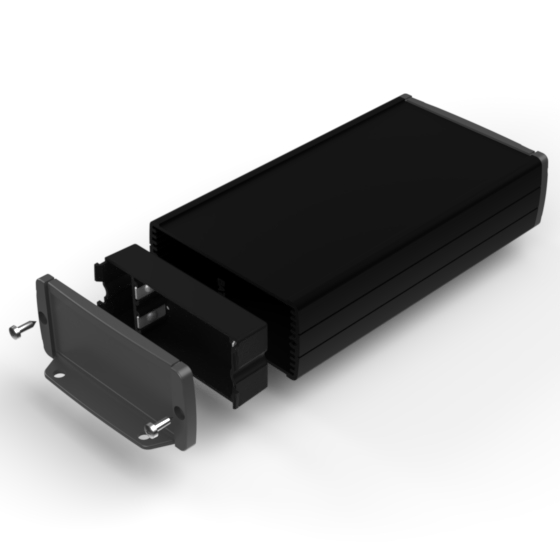

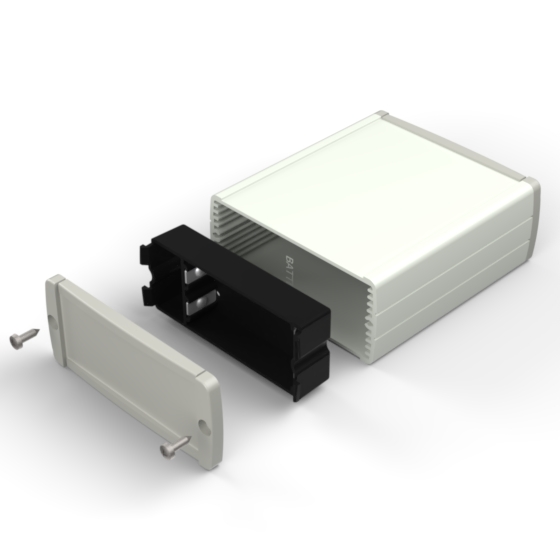

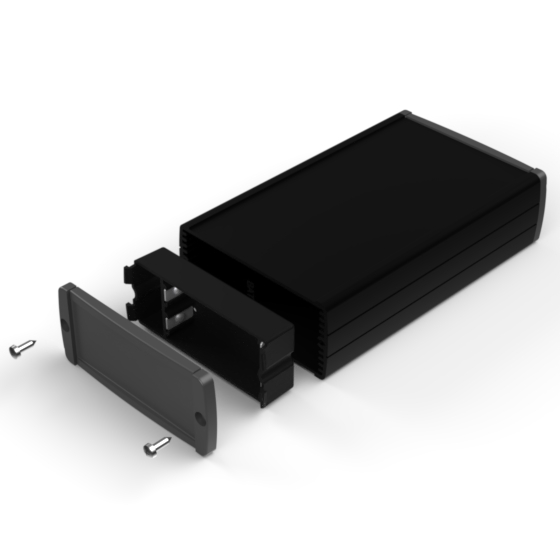

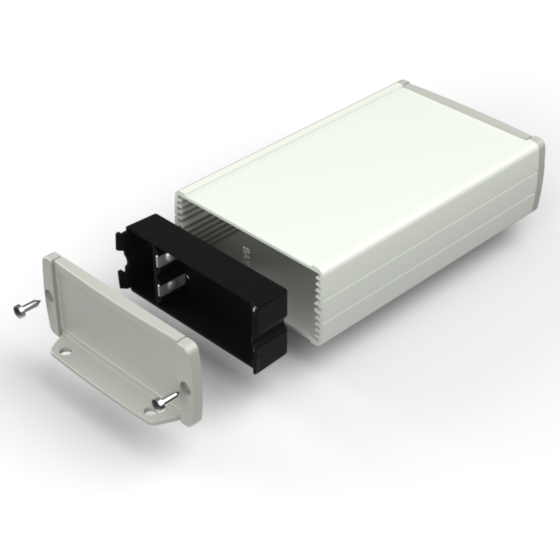

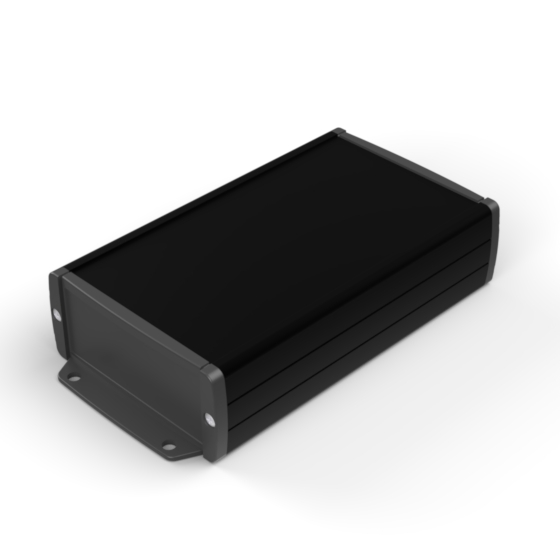

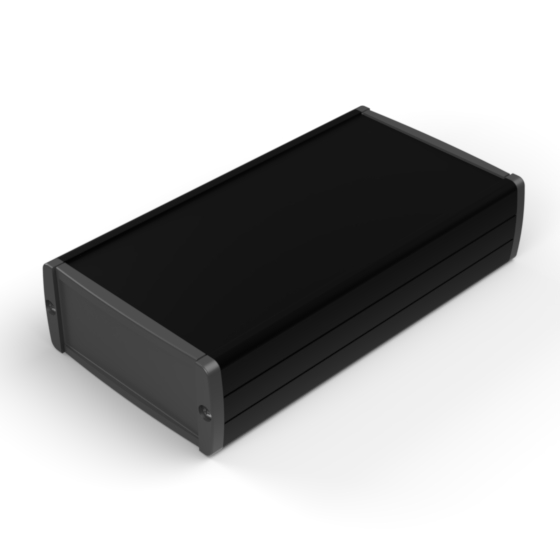

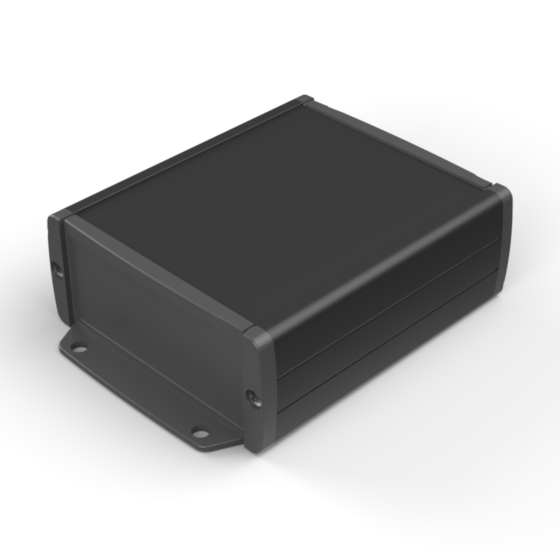

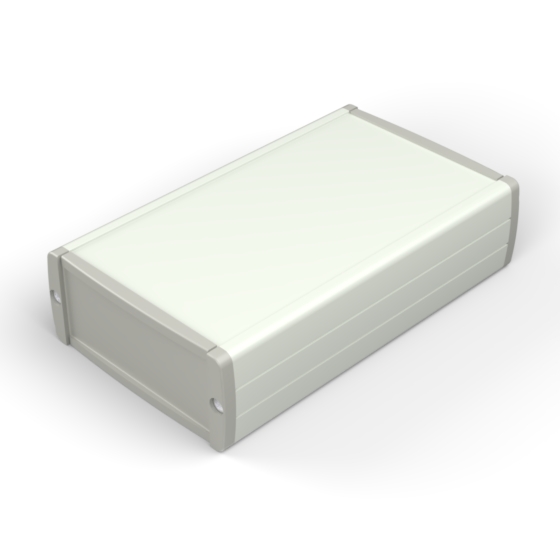

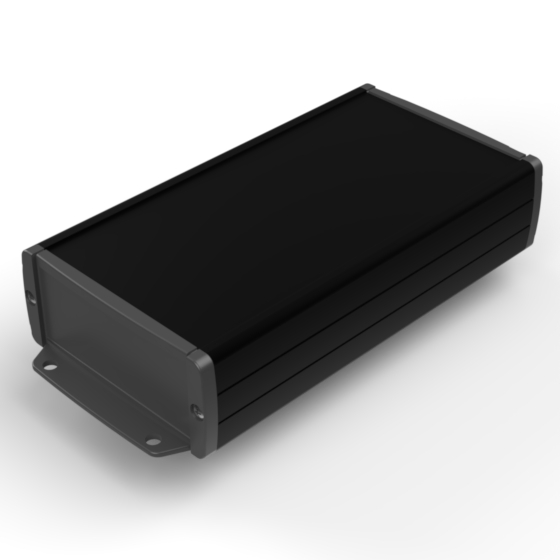

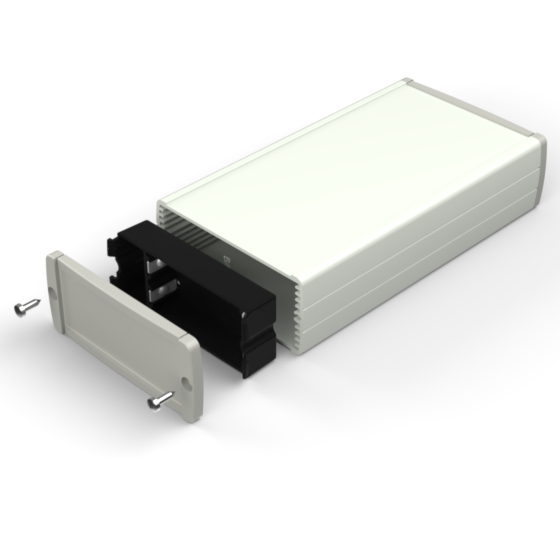

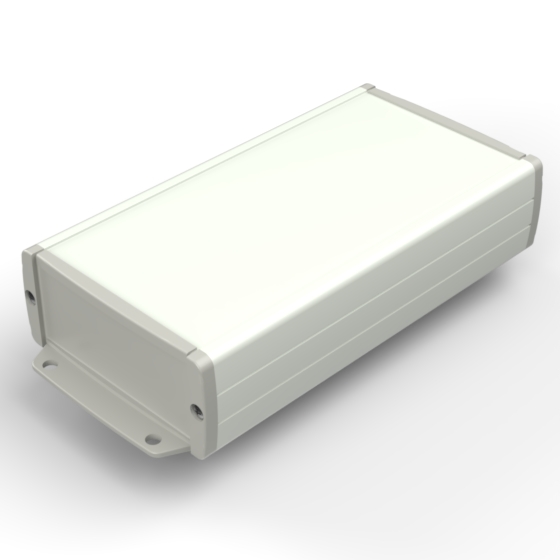

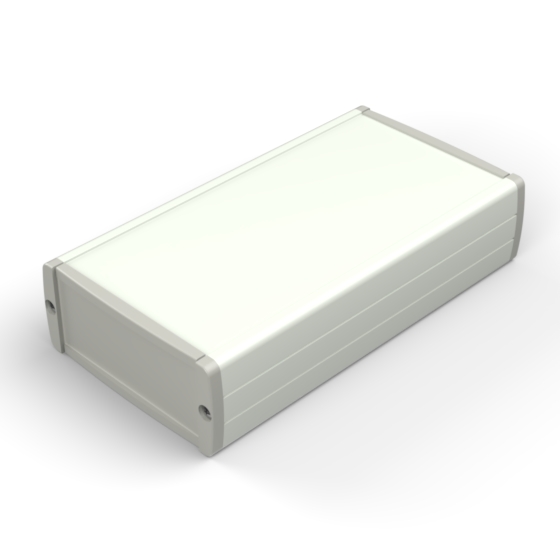

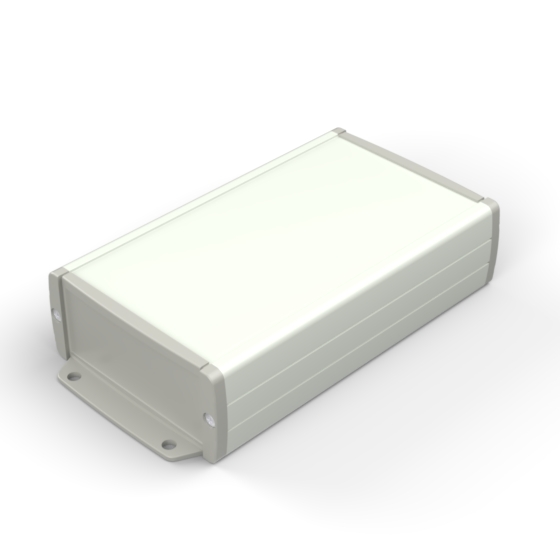

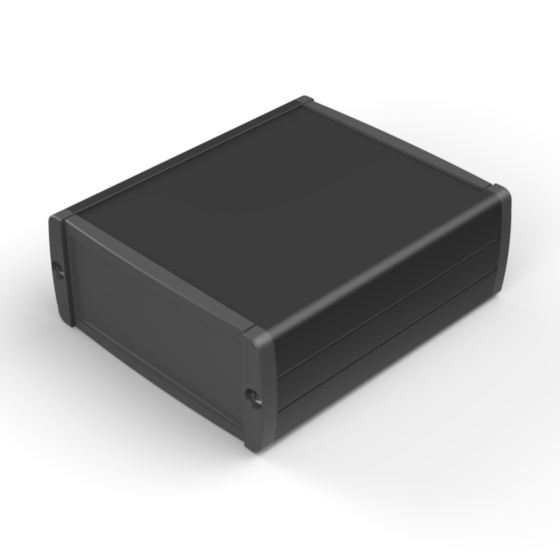

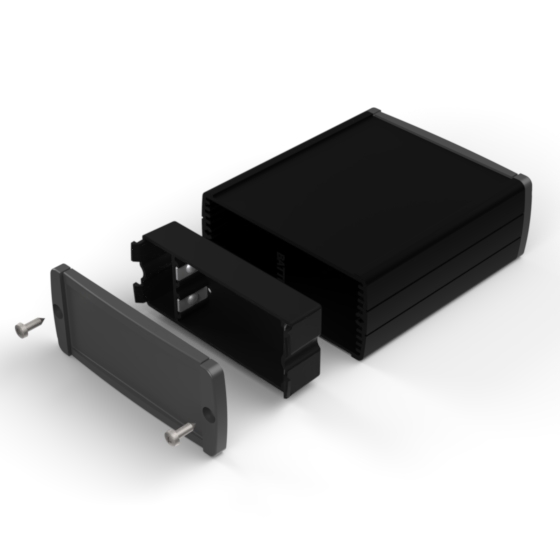

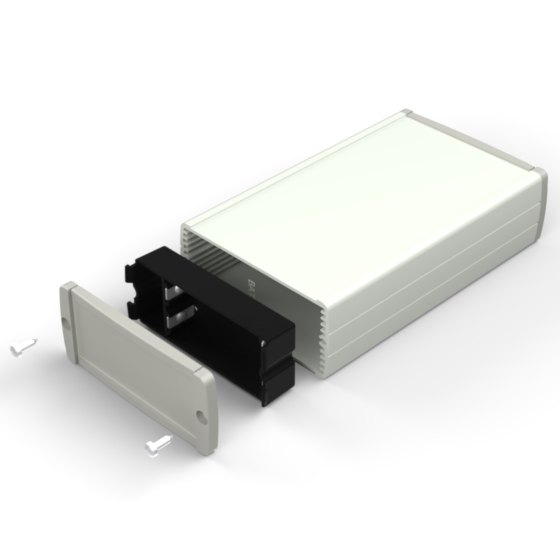

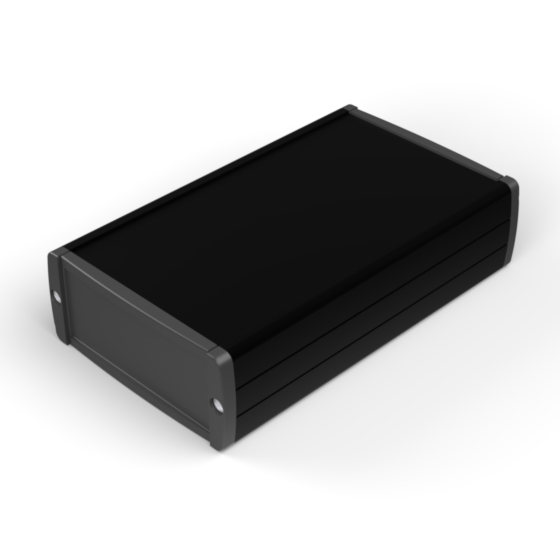

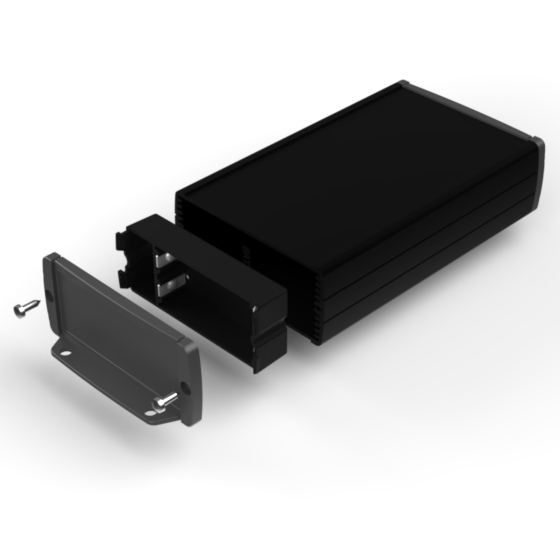

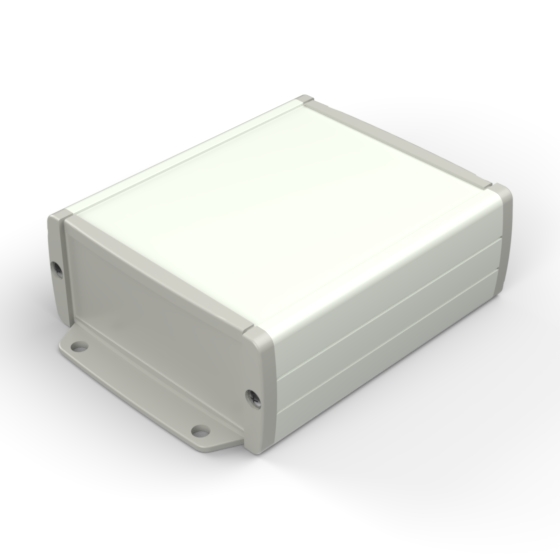

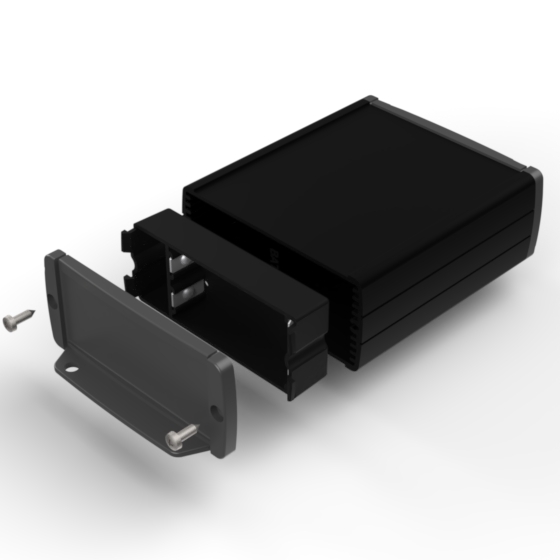

Extruded aluminium cases with high quality painted finishing. Two ABS front panels, internal slots for PCB’s and a recessed area for a keypad membrane. The model with “-B” has a battery compartment for two 1,5V mignon-cells (AA) or one 9V battery (PP3). Twelve standard models are available with different sizes. Closing by four screws.
The frame length can be customized according to requirements.
Details
.jpg)
.jpg)
Products
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

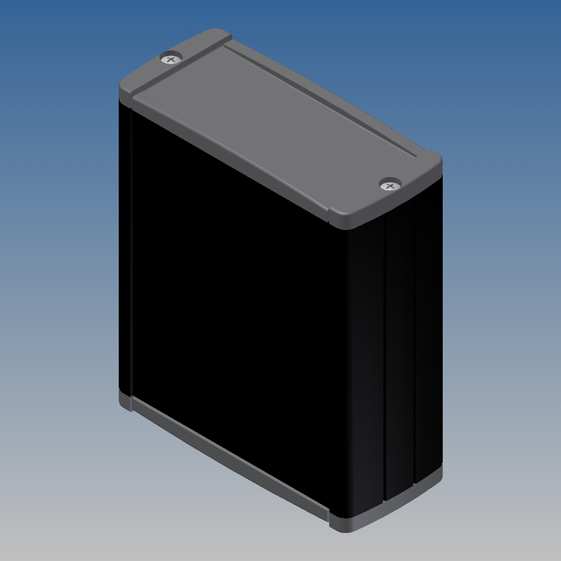

TEKAL 21.29 | 100 | 85,8 | 36,9 |
9004 7012 |
ALLOY 6060 - 1640 AS | 90 | 80,5 | 4 | - |
ALP-2 BT-2 |
PDF DWG |
|
|

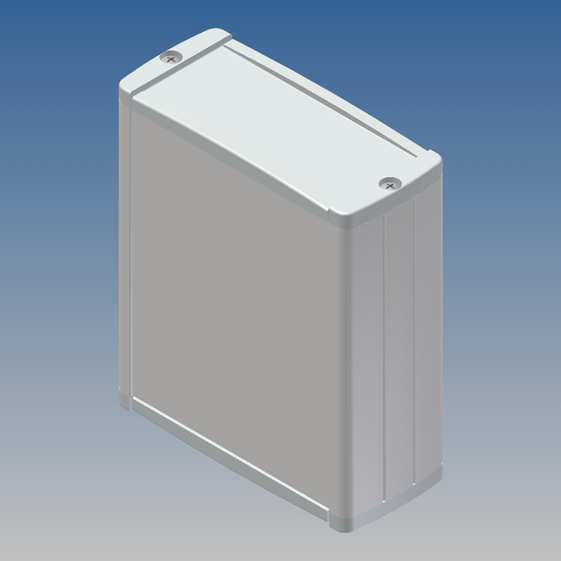

TEKAL 21.30 | 100 | 85,8 | 36,9 |
9002 9018 |
ALLOY 6060 - 1640 AS | 90 | 80,5 | 4 | - |
ALP-2 BT-2 |
PDF DWG |
|
|
TEKAL 21-B.29 | 100 | 85,8 | 36,9 |
9004 7012 |
ALLOY 6060 - 1640 AS | 72 | 80,5 | 4 | 2 x AA / 1 x 9V |
ALP-2 AB9 |
PDF DWG |
|
|
TEKAL 21-B.30 | 100 | 85,8 | 36,9 |
9002 9018 |
ALLOY 6060 - 1640 AS | 72 | 80,5 | 4 | 2 x AA / 1 x 9V |
ALP-2 AB9 |
PDF DWG |
|
|
TEKAL 21-E.29 | 100 | 85,8 | 36,9 |
9004 7012 |
ALLOY 6060 - 1640 AS | 90 | 80,5 | 4 | - |
ALP-2 BT-2 |
PDF DWG |
|
|
TEKAL 21-E.30 | 100 | 85,8 | 36,9 |
9002 9018 |
ALLOY 6060 - 1640 AS | 90 | 80,5 | 4 | - |
ALP-2 BT-2 |
PDF DWG |
|
|
TEKAL 21-EB.29 | 100 | 85,8 | 36,9 |
9004 7012 |
ALLOY 6060 - 1640 AS | 72 | 80,5 | 4 | 2 x AA / 1 x 9V |
ALP-2 AB9 |
PDF DWG |
|
|
TEKAL 21-EB.30 | 100 | 85,8 | 36,9 |
9002 9018 |
ALLOY 6060 - 1640 AS | 72 | 80,5 | 4 | 2 x AA / 1 x 9V |
ALP-2 AB9 |
PDF DWG |
|
|

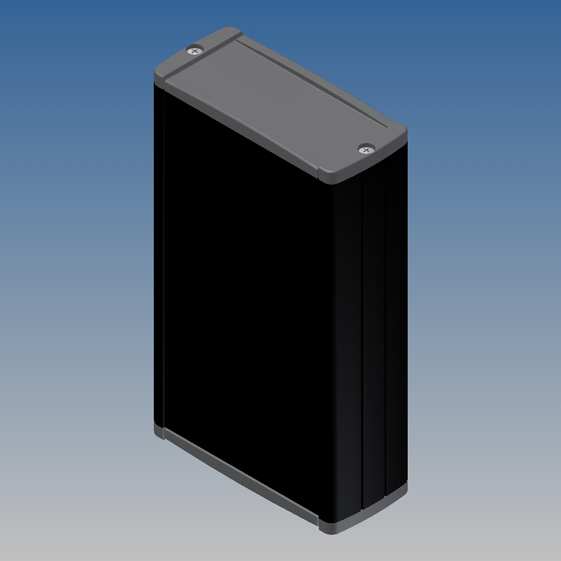

TEKAL 22.29 | 145 | 85,8 | 36,9 |
9004 7012 |
ALLOY 6060 - 1640 AS | 135 | 80,5 | 4 | - |
ALP-2 M M58 M59 BT-2 |
PDF DWG |
|
|
TEKAL 22.30 | 145 | 85,8 | 36,9 |
9002 9018 |
ALLOY 6060 - 1640 AS | 135 | 80,5 | 4 | - |
ALP-2 M M58 M59 BT-2 |
PDF DWG |
|
|

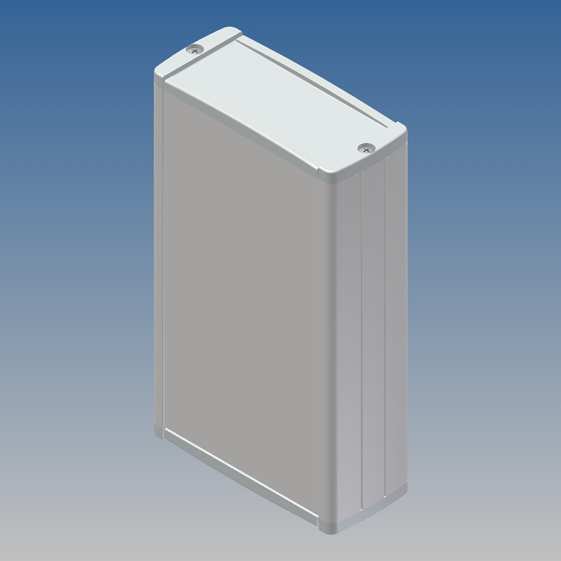

TEKAL 22-B.29 | 145 | 85,8 | 36,9 |
9004 7012 |
ALLOY 6060 - 1640 AS | 117 | 80,5 | 4 | 2 x AA / 1 x 9V |
ALP-2 M M58 M59 AB9 |
PDF DWG |
|
|
TEKAL 22-B.30 | 145 | 85,8 | 36,9 |
9002 9018 |
ALLOY 6060 - 1640 AS | 117 | 80,5 | 4 | 2 x AA / 1 x 9V |
ALP-2 M M58 M59 AB9 |
PDF DWG |
|
|
TEKAL 22-E.29 | 145 | 85,8 | 36,9 |
9004 7012 |
ALLOY 6060 - 1640 AS | 135 | 80,5 | 4 | - |
ALP-2 BT-2 M |
PDF DWG |
|
|
TEKAL 22-E.30 | 145 | 85,8 | 36,9 |
9002 9018 |
ALLOY 6060 - 1640 AS | 135 | 80,5 | 4 | - |
ALP-2 BT-2 M |
PDF DWG |
|
|
TEKAL 22-EB.29 | 145 | 85,8 | 36,9 |
9004 7012 |
ALLOY 6060 - 1640 AS | 117 | 80,5 | 4 | 2 x AA / 1 x 9V |
ALP-2 AB9 M |
PDF DWG |
|
|
TEKAL 22-EB.30 | 145 | 85,8 | 36,9 |
9002 9018 |
ALLOY 6060 - 1640 AS | 117 | 80,5 | 4 | 2 x AA / 1 x 9V |
ALP-2 AB9 M |
PDF DWG |
|
|
TEKAL 23.29 | 160 | 85,8 | 36,9 |
9004 7012 |
ALLOY 6060 - 1640 AS | 150 | 80,5 | 4 | - |
ALP-2 BT-2 |
PDF DWG |
|
|
TEKAL 23.30 | 160 | 85,8 | 36,9 |
9002 9018 |
ALLOY 6060 - 1640 AS | 150 | 80,5 | 4 | - |
ALP-2 BT-2 |
PDF DWG |
|
|
TEKAL 23-B.29 | 160 | 85,8 | 36,9 |
9004 7012 |
ALLOY 6060 - 1640 AS | 132 | 80,5 | 4 | 2 x AA / 1 x 9V |
ALP-2 AB9 |
PDF DWG |
|
|
TEKAL 23-B.30 | 160 | 85,8 | 36,9 |
9002 9018 |
ALLOY 6060 - 1640 AS | 132 | 80,5 | 4 | 2 x AA / 1 x 9V |
ALP-2 AB9 |
PDF DWG |
|
|

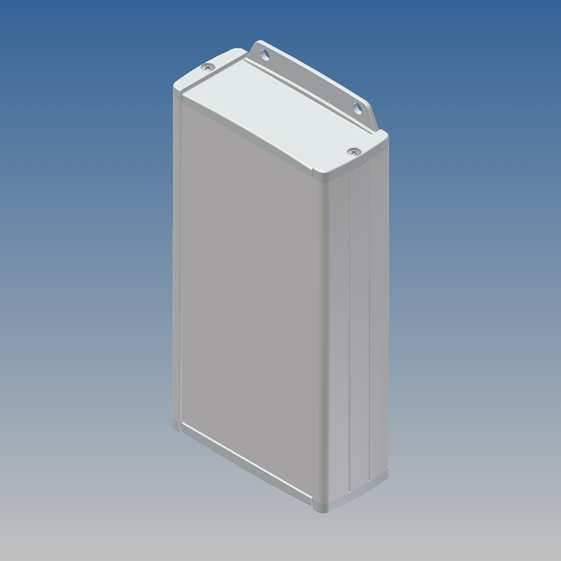

TEKAL 23-E.29 | 160 | 85,8 | 36,9 |
9004 7012 |
ALLOY 6060 - 1640 AS | 150 | 80,5 | 4 | - |
ALP-2 BT-2 |
PDF DWG |
|
|
TEKAL 23-E.30 | 160 | 85,8 | 36,9 |
9002 9018 |
ALLOY 6060 - 1640 AS | 150 | 80,5 | 4 | - |
ALP-2 BT-2 |
PDF DWG |
|
|
TEKAL 23-EB.29 | 160 | 85,8 | 36,9 |
9004 7012 |
ALLOY 6060 - 1640 AS | 132 | 80,5 | 4 | 2 x AA / 1 x 9V |
ALP-2 AB9 |
PDF DWG |
|
|
TEKAL 23-EB.30 | 160 | 85,8 | 36,9 |
9002 9018 |
ALLOY 6060 - 1640 AS | 132 | 80,5 | 4 | 2 x AA / 1 x 9V |
ALP-2 AB9 |
PDF DWG |
