Description

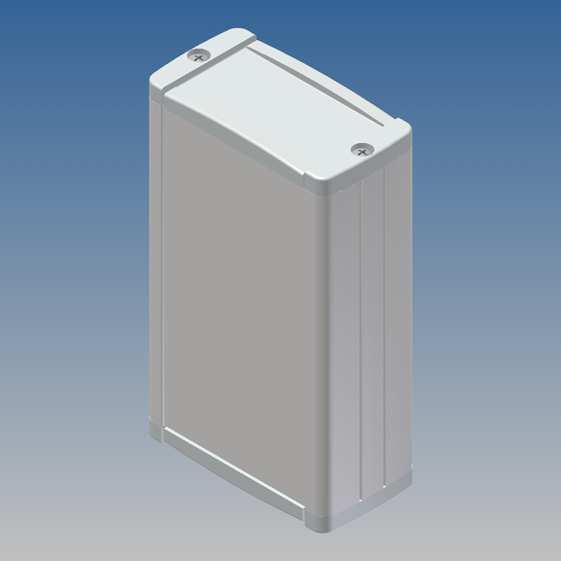

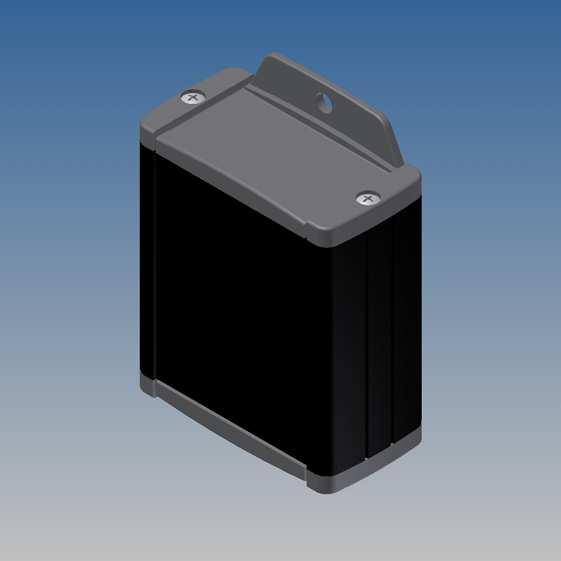

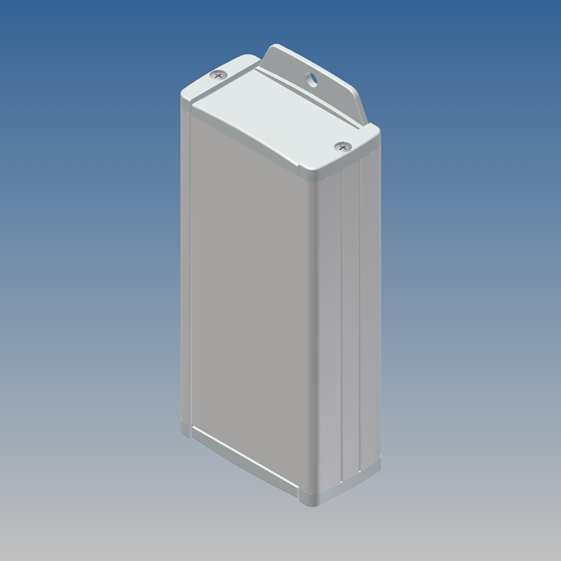

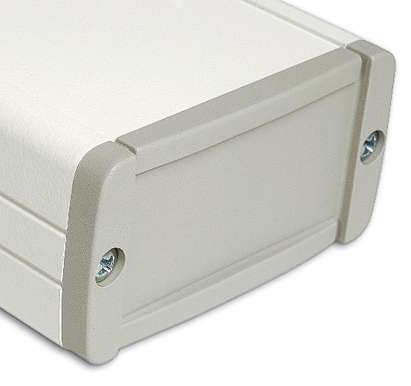

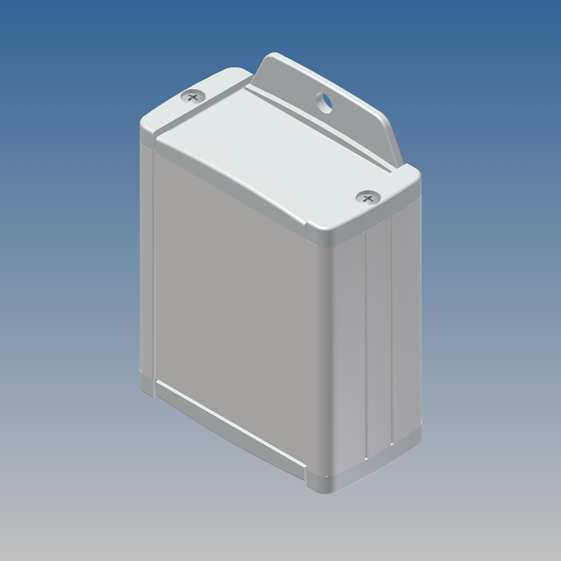

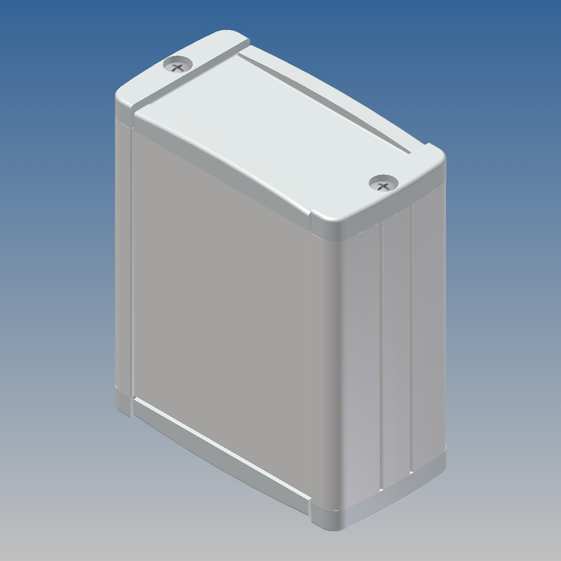

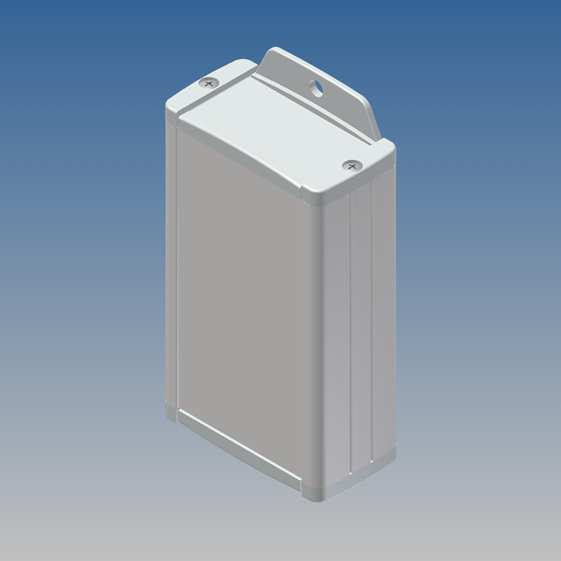

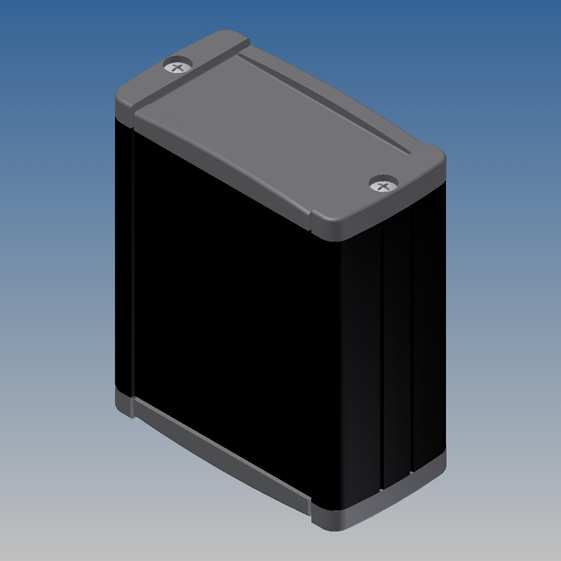

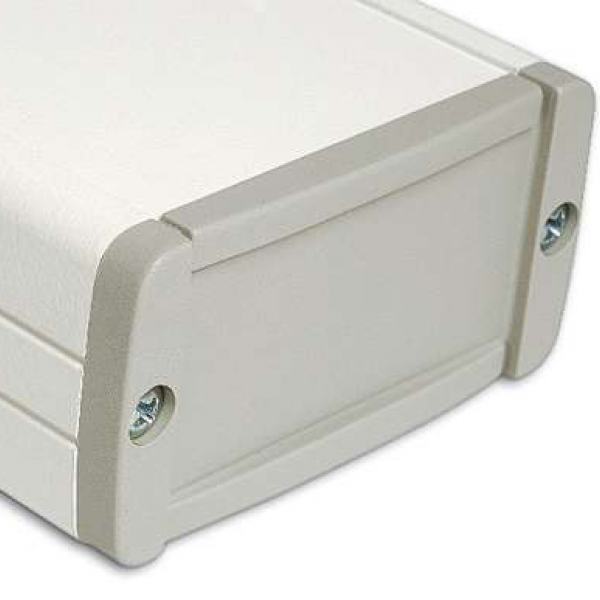

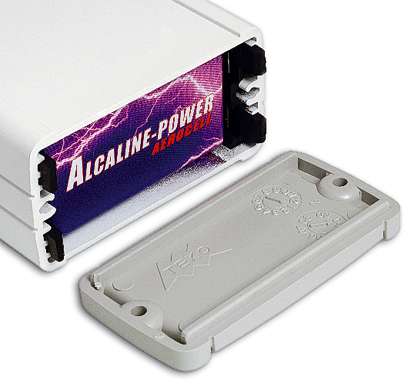

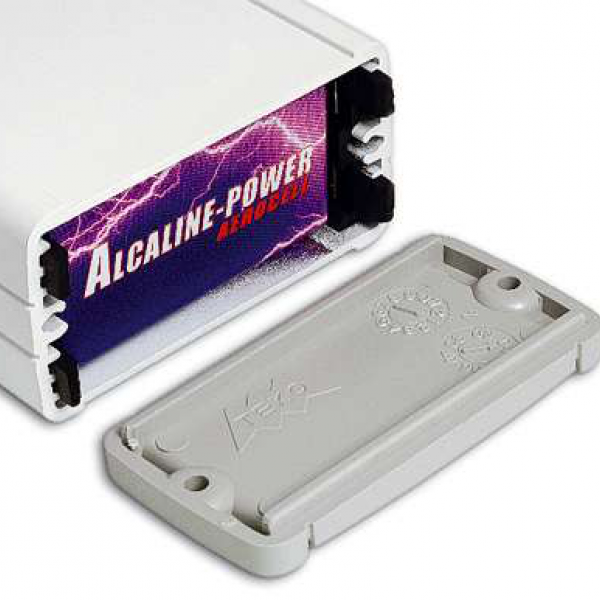

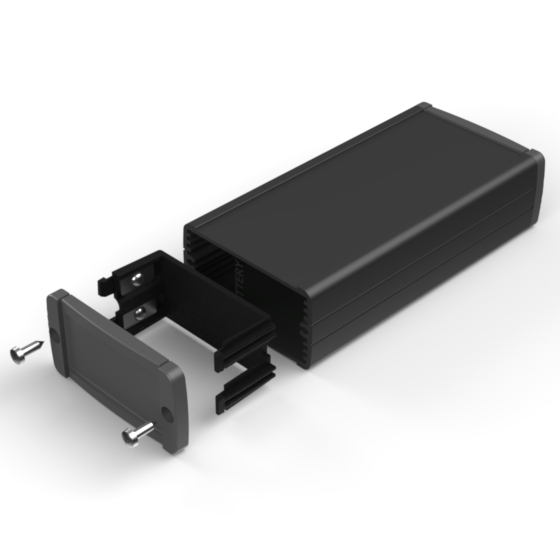

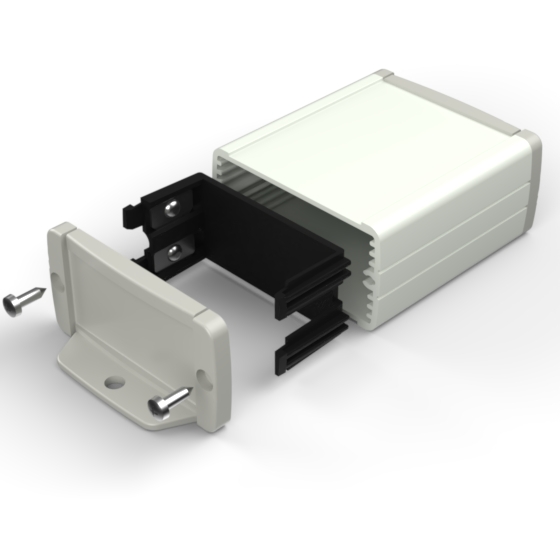

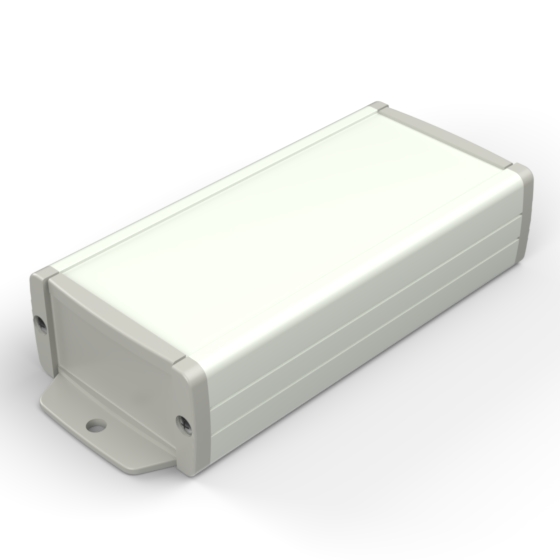

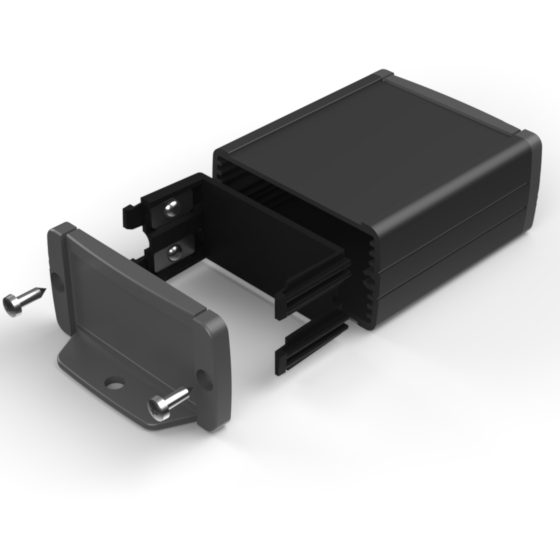

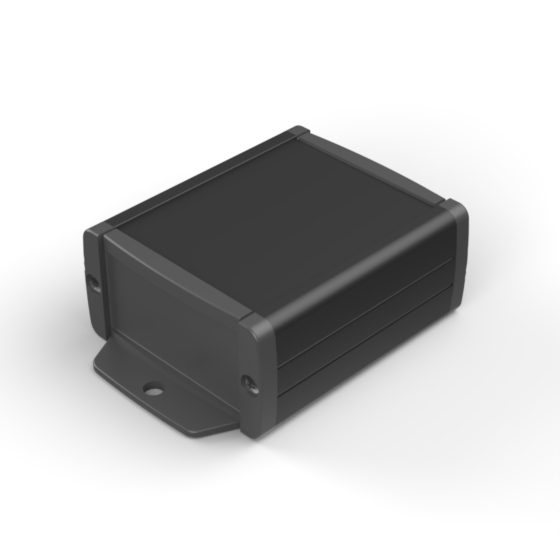

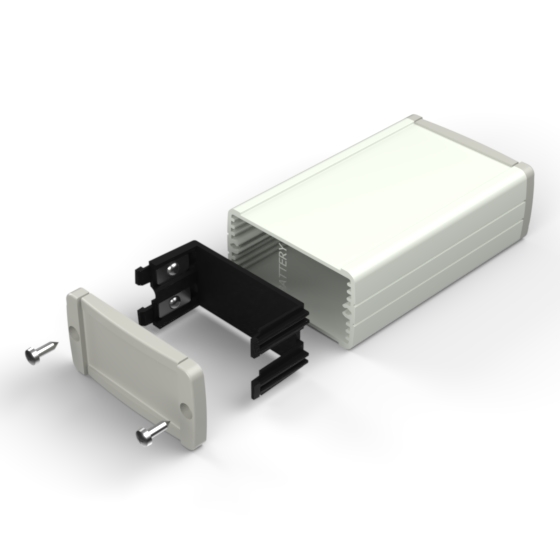

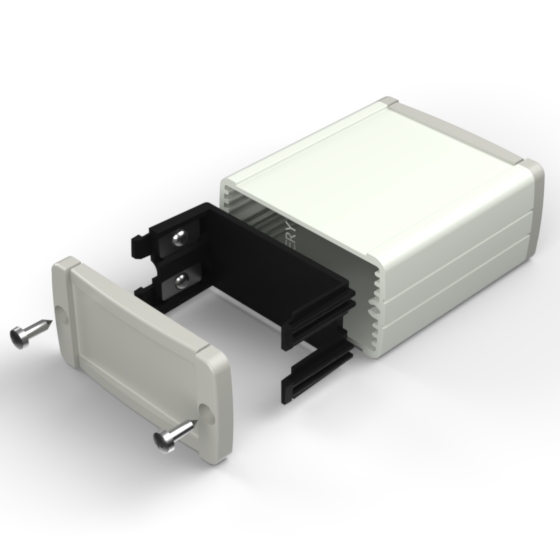

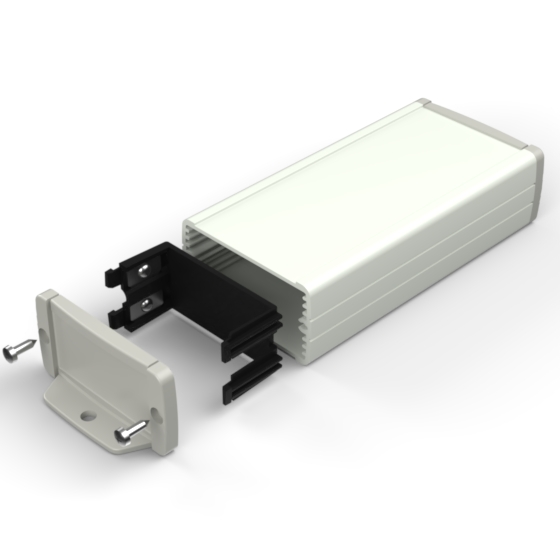

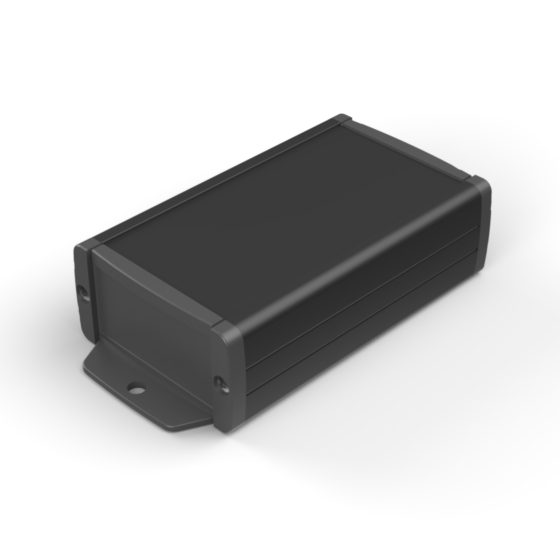

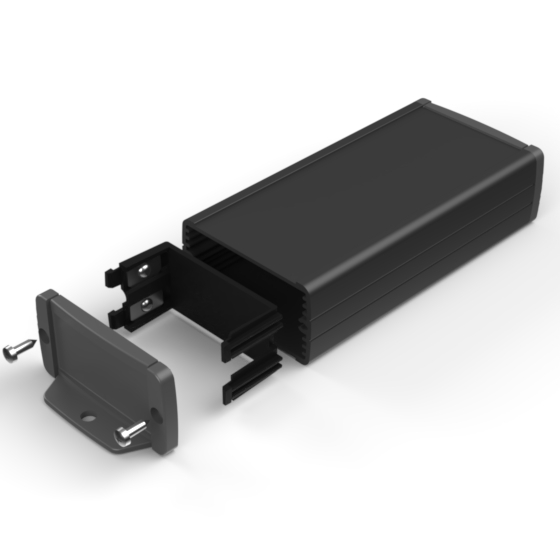

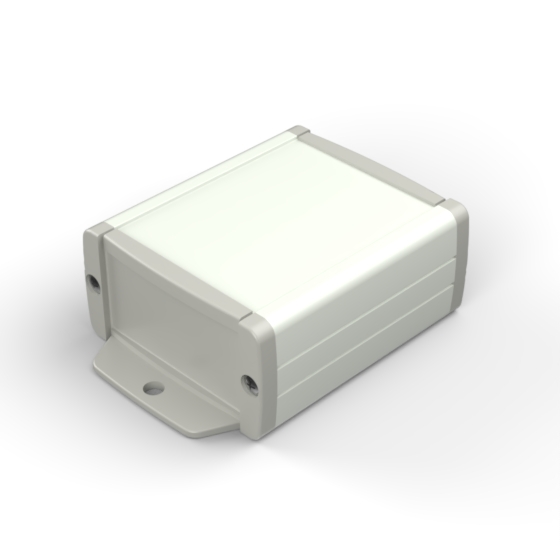

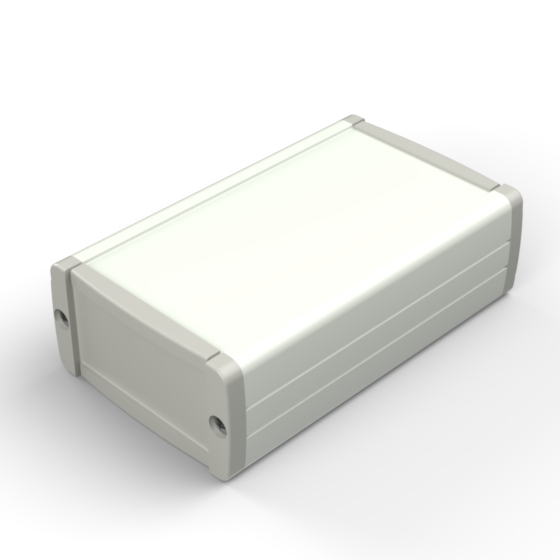

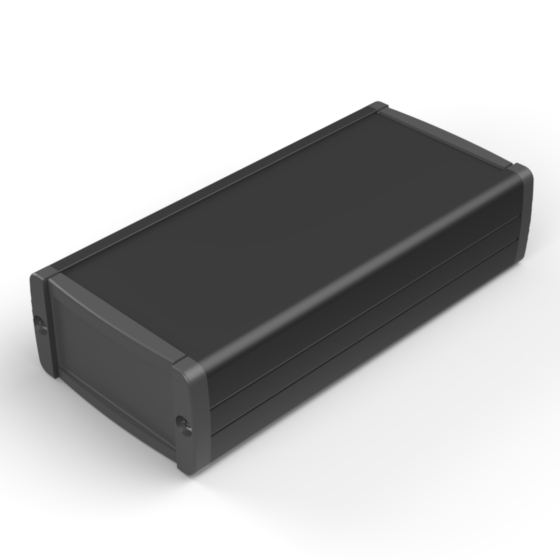

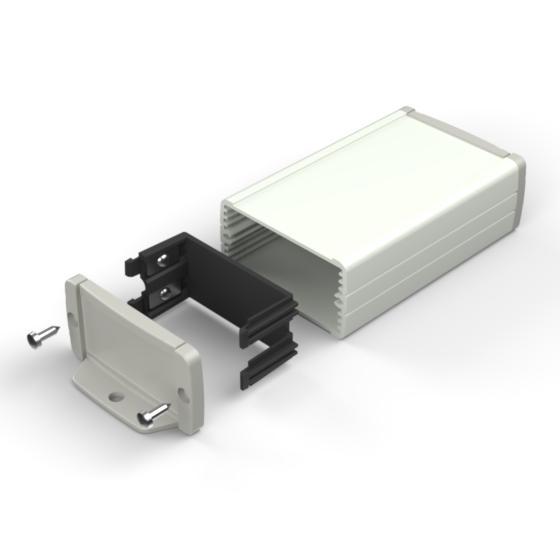

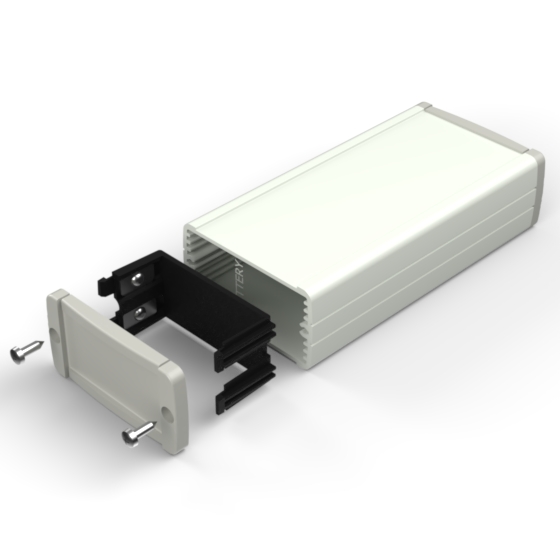

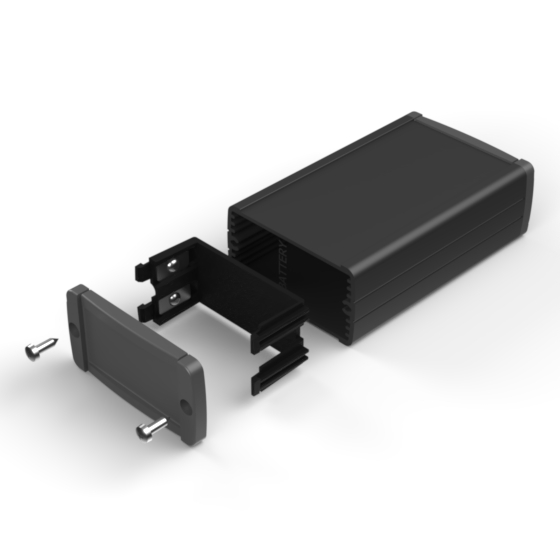

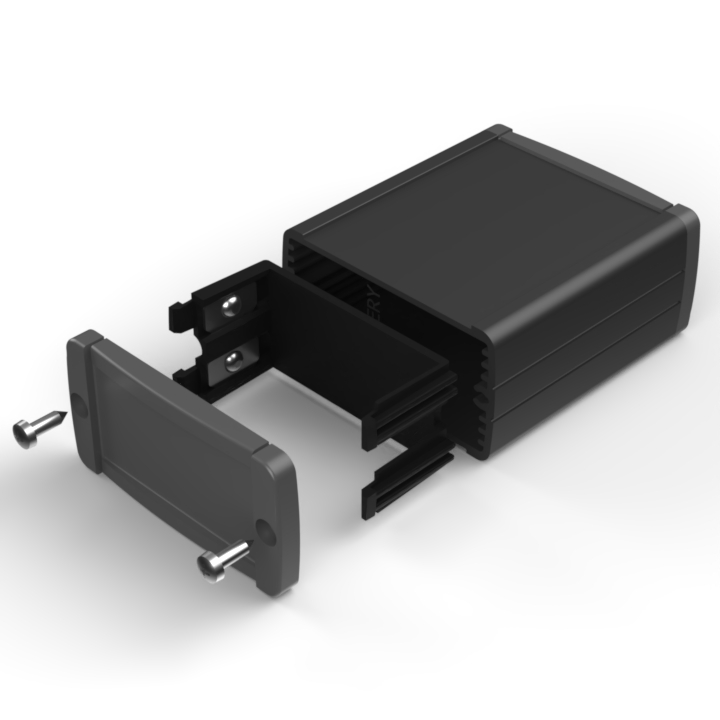

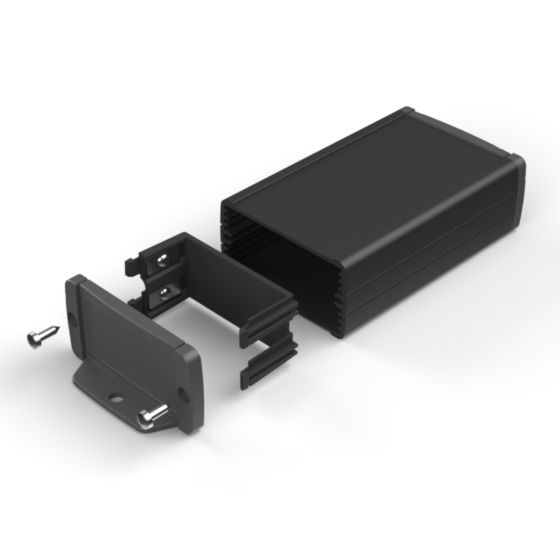

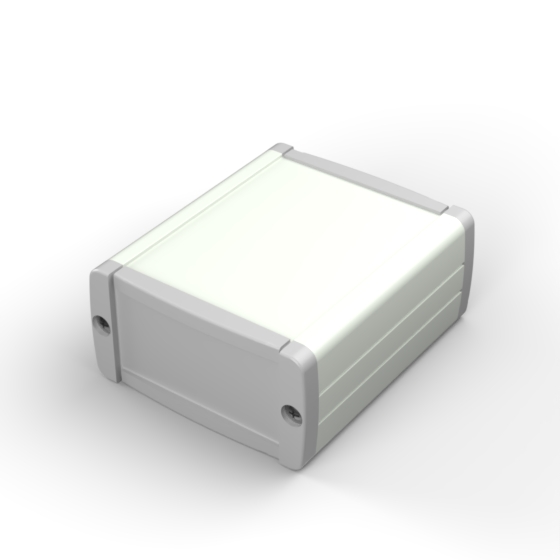

Extruded aluminium cases with high quality painted finishing. Two ABS front panels, internal slots for PCB’s and a recessed area for a keypad membrane. The model with “-B” has a battery compartment for two 1,5V mignon-cells (AA) or one 9V battery (PP3). Twelve standard models are available with different sizes. Closing by four screws.
The frame length can be customized according to requirements.
Details
.jpg)
.jpg)
Products
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TEKAL 11.29 | 70 | 59,9 | 30,9 |
9004 7012 |
ALLOY 6060 - 1640 AS | 60 | 54,5 | 4 | - |
ALP-1 |
PDF DWG |
|
|
TEKAL 11.30 | 70 | 59,9 | 30,9 |
9002 9018 |
ALLOY 6060 - 1640 AS | 60 | 54,5 | 4 | - |
ALP-1 |
PDF DWG |
|
|
TEKAL 11-B.29 | 70 | 59,9 | 30,9 |
9004 7012 |
ALLOY 6060 - 1640 AS | 38 | 54,5 | 4 | 1 x 9V |
ALP-1 AB9 |
PDF DWG |
|
|
TEKAL 11-B.30 | 70 | 59,9 | 30,9 |
9002 9018 |
ALLOY 6060 - 1640 AS | 38 | 54,5 | 4 | 1 x 9V |
ALP-1 AB9 |
PDF DWG |
|
|
TEKAL 11-E.29 | 70 | 59,9 | 30,9 |
9004 7012 |
ALLOY 6060 - 1640 AS | 60 | 54,5 | 4 | - |
ALP-1 |
PDF DWG |
|
|
TEKAL 11-E.30 | 70 | 59,9 | 30,9 |
9002 9018 |
ALLOY 6060 - 1640 AS | 60 | 54,5 | 4 | - |
ALP-1 |
PDF DWG |
|
|
TEKAL 11-EB.29 | 70 | 59,9 | 30,9 |
9004 7012 |
ALLOY 6060 - 1640 AS | 38 | 54,5 | 4 | 1 x 9V |
ALP-1 AB9 |
PDF DWG |
|
|
TEKAL 11-EB.30 | 70 | 59,9 | 30,9 |
9002 9018 |
ALLOY 6060 - 1640 AS | 38 | 54,5 | 4 | 1 x 9V |
ALP-1 AB9 |
PDF DWG |
|
|
TEKAL 12.29 | 100 | 59,9 | 30,9 |
9004 7012 |
ALLOY 6060 - 1640 AS | 90 | 54,5 | 4 | - |
ALP-1 |
PDF DWG |
|
|
TEKAL 12.30 | 100 | 59,9 | 30,9 |
9002 9018 |
ALLOY 6060 - 1640 AS | 90 | 54,5 | 4 | - |
ALP-1 |
PDF DWG |
|
|
TEKAL 12-B.29 | 100 | 59,9 | 30,9 |
9004 7012 |
ALLOY 6060 - 1640 AS | 68 | 54,5 | 4 | 1 x 9V |
ALP-1 AB9 |
PDF DWG |
|
|
TEKAL 12-B.30 | 100 | 59,9 | 30,9 |
9002 9018 |
ALLOY 6060 - 1640 AS | 68 | 54,5 | 4 | 1 x 9V |
ALP-1 AB9 |
PDF DWG |
|
|
TEKAL 12-E.29 | 100 | 59,9 | 30,9 |
9004 7012 |
ALLOY 6060 - 1640 AS | 90 | 54,5 | 4 | - |
ALP-1 |
PDF DWG |
|
|
TEKAL 12-E.30 | 100 | 59,9 | 30,9 |
9002 9018 |
ALLOY 6060 - 1640 AS | 90 | 54,5 | 4 | - |
ALP-1 |
PDF DWG |
|
|
TEKAL 12-EB.29 | 100 | 59,9 | 30,9 |
9004 7012 |
ALLOY 6060 - 1640 AS | 68 | 54,5 | 4 | 1 x 9V |
ALP-1 AB9 |
View
|
|
|
TEKAL 12-EB.30 | 100 | 59,9 | 30,9 |
9002 9018 |
ALLOY 6060 - 1640 AS | 68 | 54,5 | 4 | 1 x 9V |
ALP-1 AB9 |
View
|
|
|
TEKAL 13.29 | 125 | 59,9 | 30,9 |
9004 7012 |
ALLOY 6060 - 1640 AS | 115 | 54,5 | 4 | - |
ALP-1 |
PDF DWG |
|
|
TEKAL 13.30 | 125 | 59,9 | 30,9 |
9002 9018 |
ALLOY 6060 - 1640 AS | 115 | 54,5 | 4 | - |
ALP-1 |
PDF DWG |
|
|
TEKAL 13-B.29 | 125 | 59,9 | 30,9 |
9004 7012 |
ALLOY 6060 - 1640 AS | 93 | 54,5 | 4 | 1 x 9V |
ALP-1 AB9 |
PDF DWG |
|
|
TEKAL 13-B.30 | 125 | 59,9 | 30,9 |
9002 9018 |
ALLOY 6060 - 1640 AS | 93 | 54,5 | 4 | 1 x 9V |
ALP-1 AB9 |
PDF DWG |
|
|
TEKAL 13-E.29 | 125 | 59,9 | 30,9 |
9004 7012 |
ALLOY 6060 - 1640 AS | 115 | 54,5 | 4 | - |
ALP-1 |
PDF DWG |
|
|
TEKAL 13-E.30 | 125 | 59,9 | 30,9 |
9002 9018 |
ALLOY 6060 - 1640 AS | 115 | 54,5 | 4 | - |
ALP-1 |
PDF DWG |
|
|
TEKAL 13-EB.29 | 125 | 59,9 | 30,9 |
9004 7012 |
ALLOY 6060 - 1640 AS | 93 | 54,5 | 4 | 1 x 9V |
ALP-1 AB9 |
PDF DWG |
|
|
TEKAL 13-EB.30 | 125 | 59,9 | 30,9 |
9002 9018 |
ALLOY 6060 - 1640 AS | 93 | 54,5 | 4 | 1 x 9V |
ALP-1 AB9 |
PDF DWG |
12 product families, 155 series. You can't find what you're looking for? Contact us
