Description

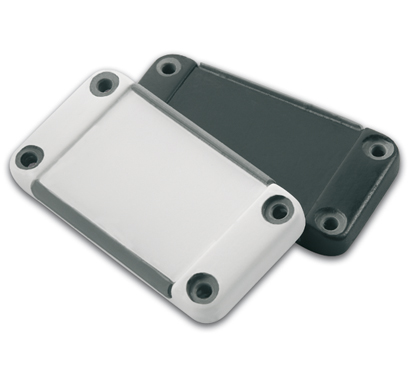

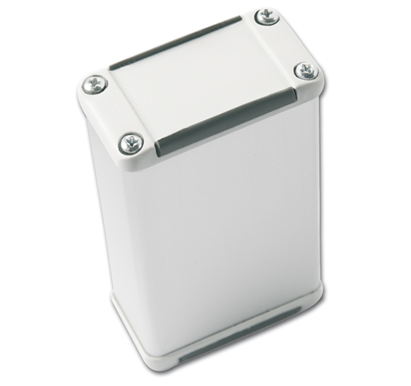

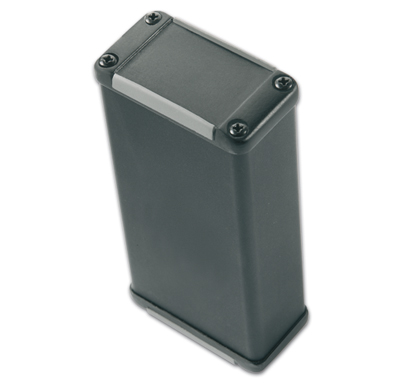

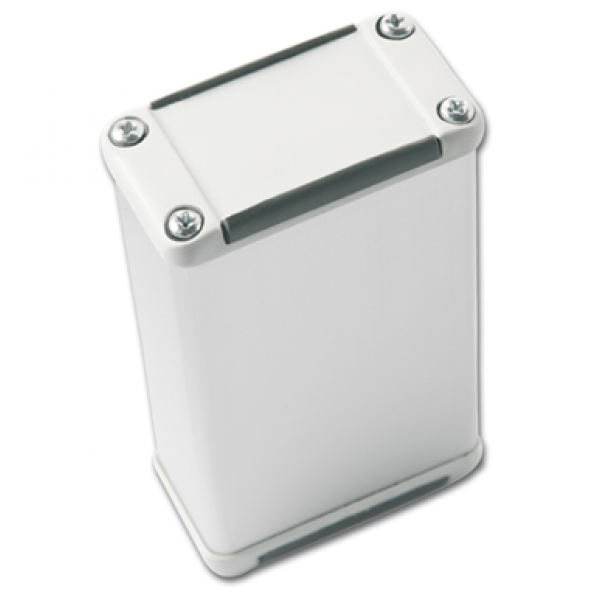

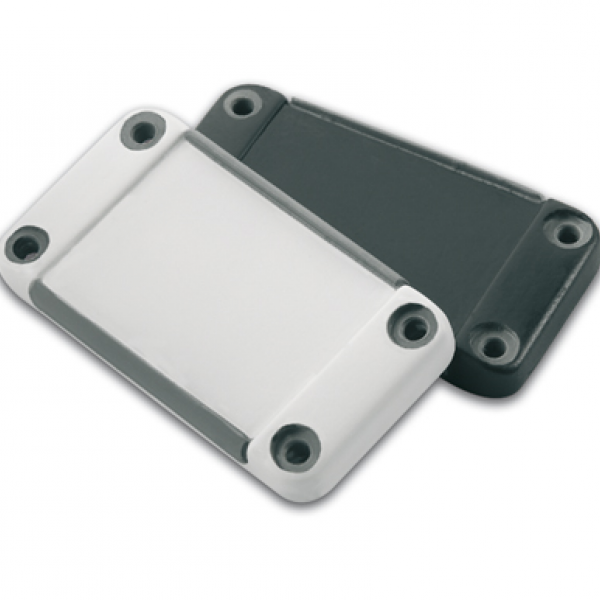

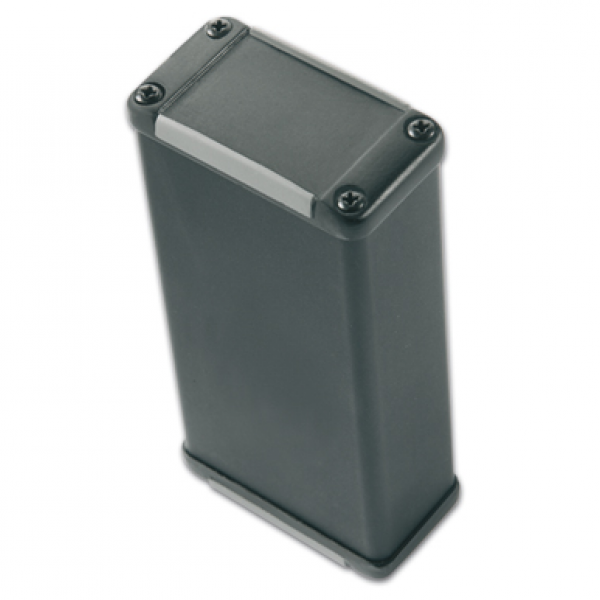

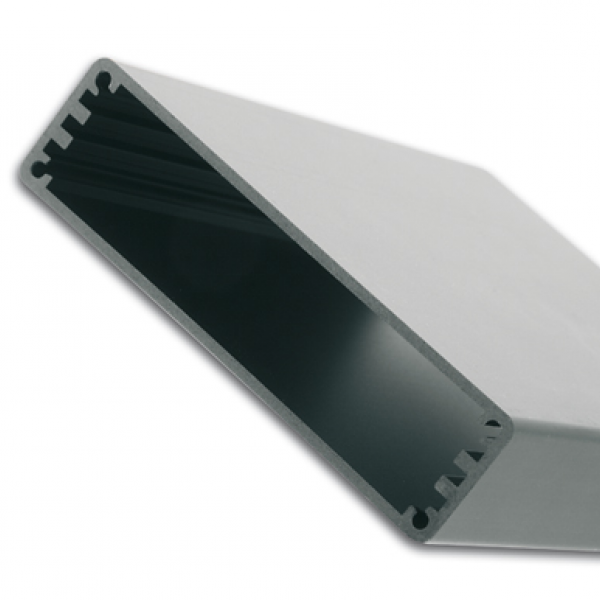

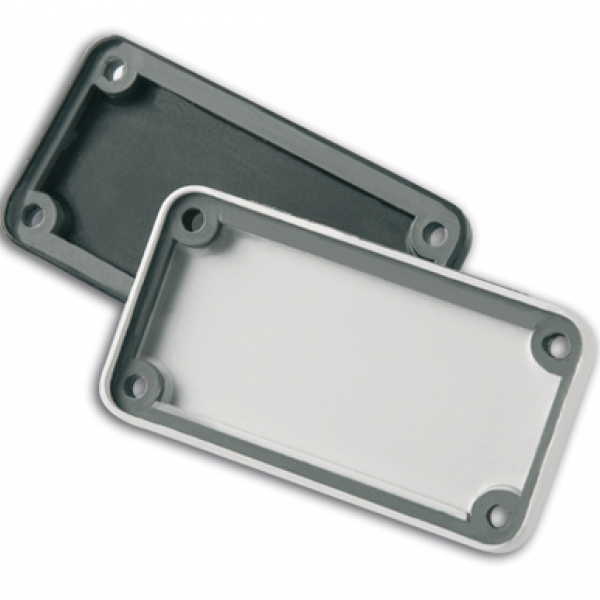

Series of small powder coating aluminium enclosures with multi-shot moulded (ABS+TPU) two-tone coloured front cover panels. They have co-moulded sealing to protect against water and from dust (IP65). The internal guides allow an easy assembly of PCB. Closing by eight screws.
The frame length can be customized according to requirements.
Details
Products
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 (2).jpg)
|
MTK465PK.1 | 75 | 44 | 24 |
9006 |
ALLOY 6060 - P2H-AT | 65 | 39,4 | 8 |
PDF DWG |
View
|
||
 (2).jpg)
|
MTK465PK.9 | 75 | 44 | 24 |
9004 |
ALLOY 6060 - P2H-AT | 65 | 39,4 | 8 |
PDF DWG |
View
|
||
.jpg)
|
MTK480PK.1 | 90 | 44 | 24 |
9006 |
ALLOY 6060 - P2H-AT | 80 | 39,4 | 8 |
PDF DWG |
View
|
||
.jpg)
|
MTK480PK.9 | 90 | 44 | 24 |
9004 |
ALLOY 6060 - P2H-AT | 80 | 39,4 | 8 |
PDF DWG |
View
|
||
.jpg)
|
MTK5110PK.1 | 120 | 52 | 21 |
9006 |
ALLOY 6060 - P2H-AT | 110 | 47 | 8 |
PDF DWG |
View
|
||
.jpg)
|
MTK5110PK.9 | 120 | 52 | 21 |
9004 |
ALLOY 6060 - P2H-AT | 110 | 47 | 8 |
PDF DWG |
View
|
||
.jpg)
|
MTK580PK.1 | 90 | 52 | 21 |
9006 |
ALLOY 6060 - P2H-AT | 80 | 47 | 8 |
PDF |
View
|
||
.jpg)
|
MTK580PK.9 | 90 | 52 | 21 |
9004 |
ALLOY 6060 - P2H-AT | 80 | 47 | 8 |
PDF |
View
|
||
.jpg)
|
MTK6110PK.1 | 120 | 67 | 19 |
9006 |
ALLOY 6060 - P2H-AT | 110 | 62,4 | 8 |
PDF DWG |
View
|
||
.jpg)
|
MTK6110PK.9 | 120 | 67 | 19 |
9004 |
ALLOY 6060 - P2H-AT | 110 | 62,4 | 8 |
PDF DWG |
View
|
||
.jpg)
|
MTK680PK.1 | 90 | 67 | 19 |
9006 |
ALLOY 6060 - P2H-AT | 80 | 62,4 | 8 |
PDF DWG |
View
|
||
.jpg)
|
MTK680PK.9 | 90 | 67 | 19 |
9004 |
ALLOY 6060 - P2H-AT | 80 | 62,4 | 8 |
PDF DWG |
View
|
